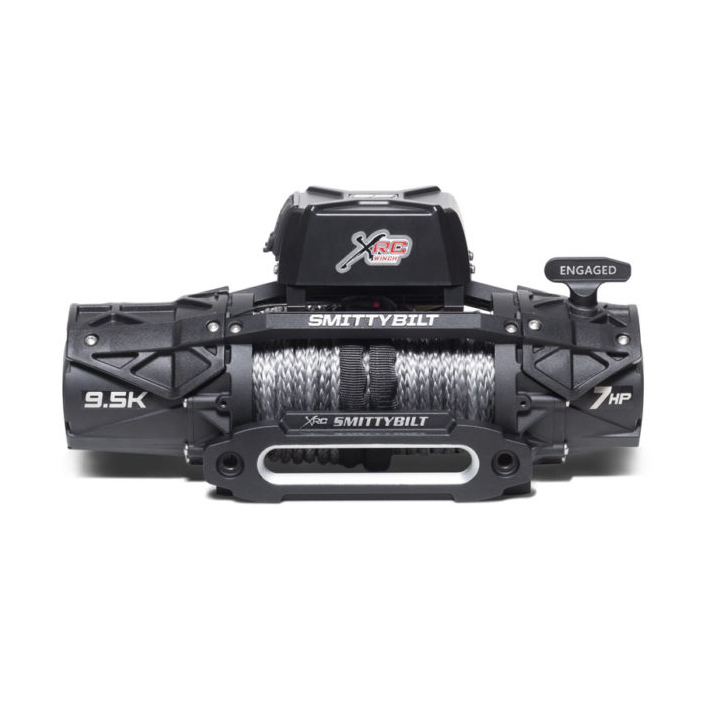

Smittybilt XRC 9.5 Comp Winch

$614.79

NCLUDED WITH THE XRC GEN3 WINCH:
• FORGED WINCH HOOK
• SYNTHETIC CABLE W/ HAWSE FAIRLEAD
• MOVEABLE CONTROL BOX BRACKET

In stock

Warranty: Lifetime

Description

GENERAL SPECIFICATIONS XRC GEN3 9.5K COMP SERIES
Cable/Rope Type Synthetic
Part Number 98695
Regular List Price
$579.99
Fairlead Type Hawse
Rated Line Pull 9500lb
Motor 7.0 HP
NEW! Load Indicator System YES
NEW! Controller Flashlight
YES
NEW! Aluminum Tie Bar Light
YES
NEW! Detachable Body Armor
YES
NEW! 12 Volt Power Outlet
YES
NEW! Control Box DRL
YES
NEW! High-Visibility Clutch Lever
YES
NEW! Dual-Magnet Controller Mount
YES
Moveable Control Box
YES
Int’l Waterproof Rating IP67
Electrical Warranty 5 years
Mechanical Warranty LIFETIME



LINE SPEED/AMP DRAW
Line Pull – lb 0 2000 4000 6000 8000 9500
Line Pull – Kg 0 910 1814 2720 3625 4536
Line Speed – Ft/min 27.3 18.3 15.4 12.8 10 7.5
Line Speed – M/min 10.8 6.30 4.35 3.45 2.90 2.25
Motor – AMPS 80 160 220 280 340 385



LINE PULL/CABLE CAPACITY
Layers of Cable 1 2 3 4
Rated Line Pull, per Layer – lb 9500 8435 7640 7086
Rated Line Pull, per Layer – kg 4305 3822 3460 3212
Cumulative Cable – ft 16 42 72 94
Capacity – m 5 12 21

Additional information

Weight 65 lbs
Dimensions 30 × 15 × 15 in
